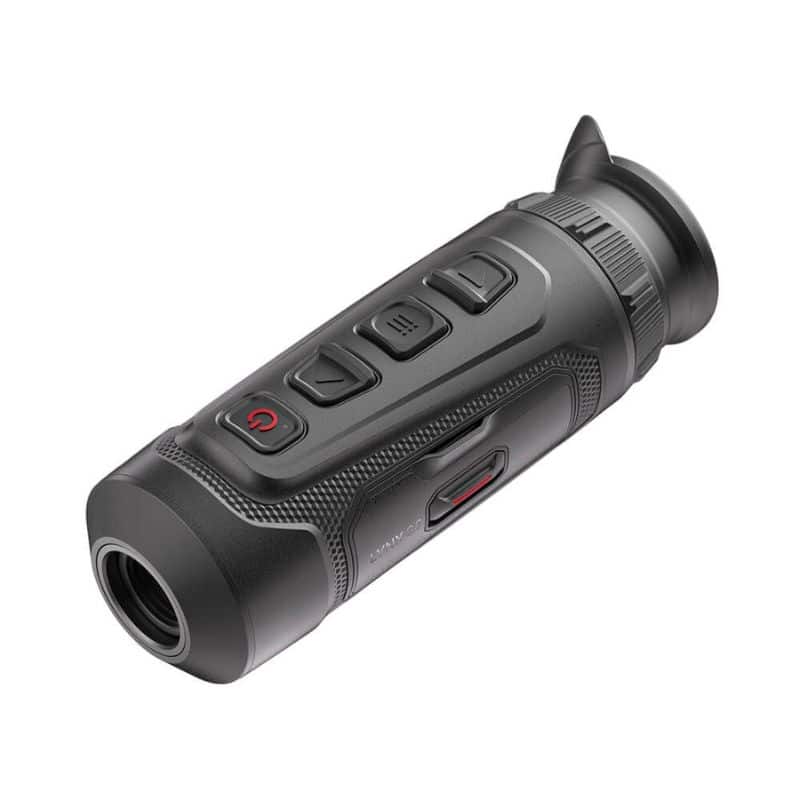

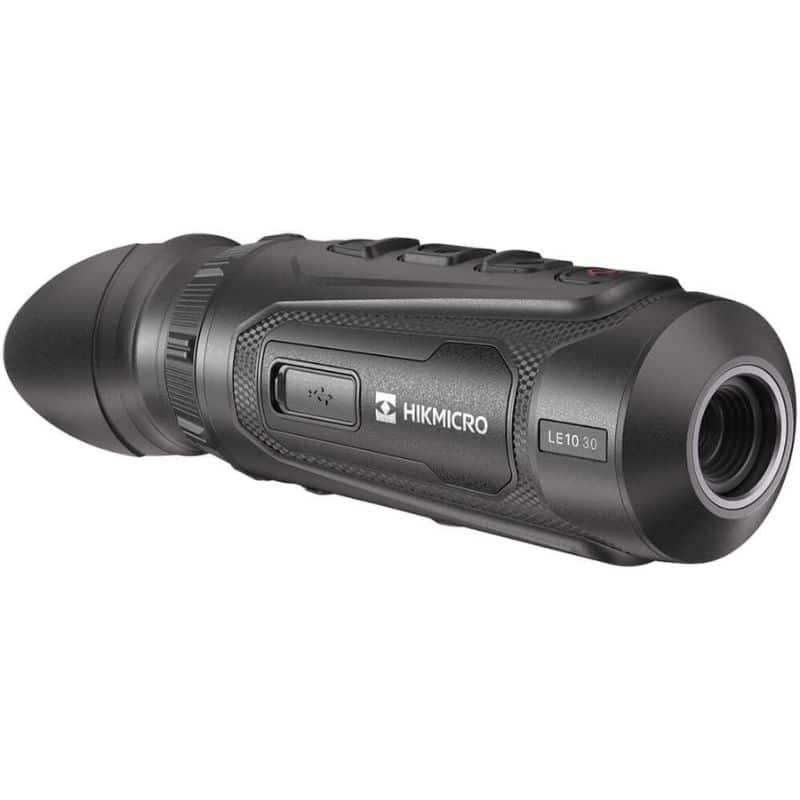

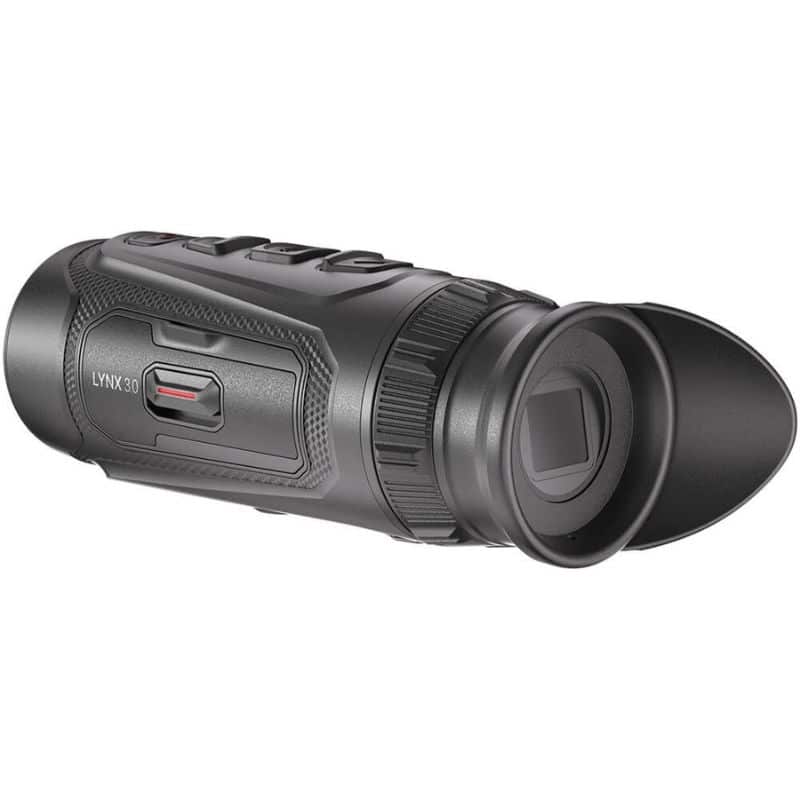

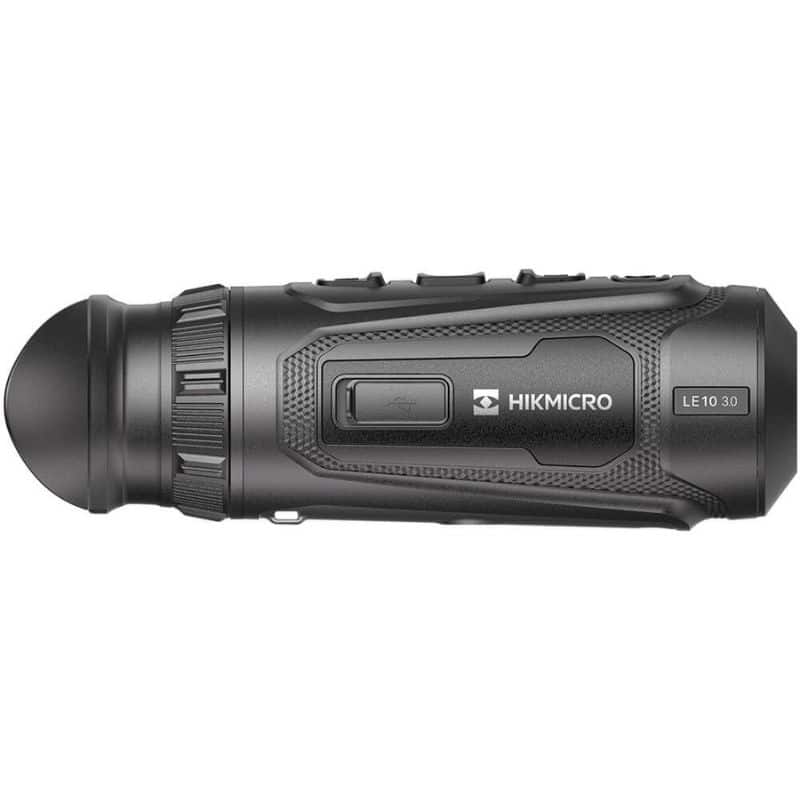

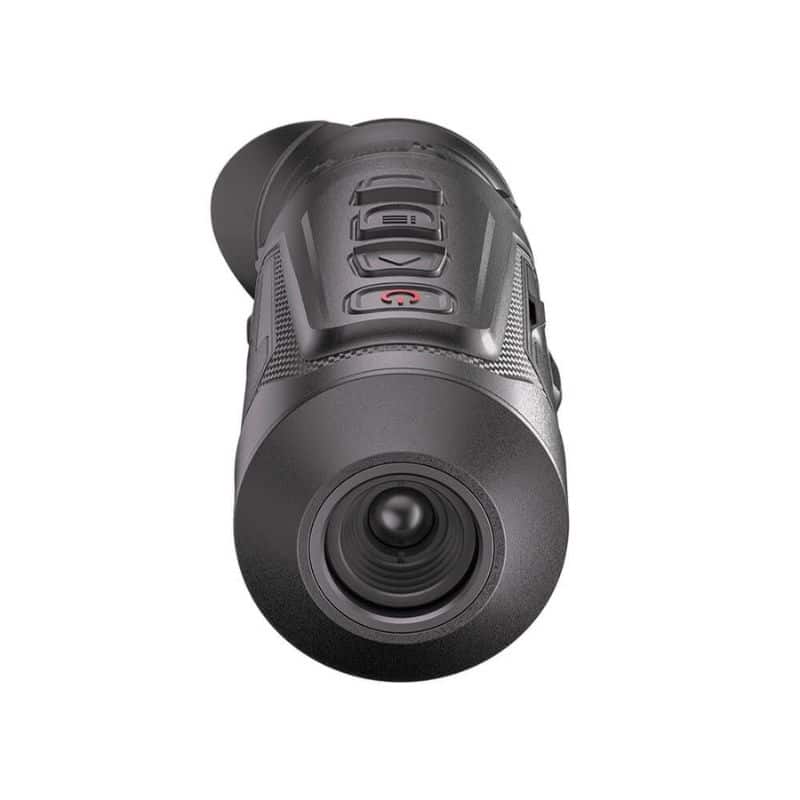

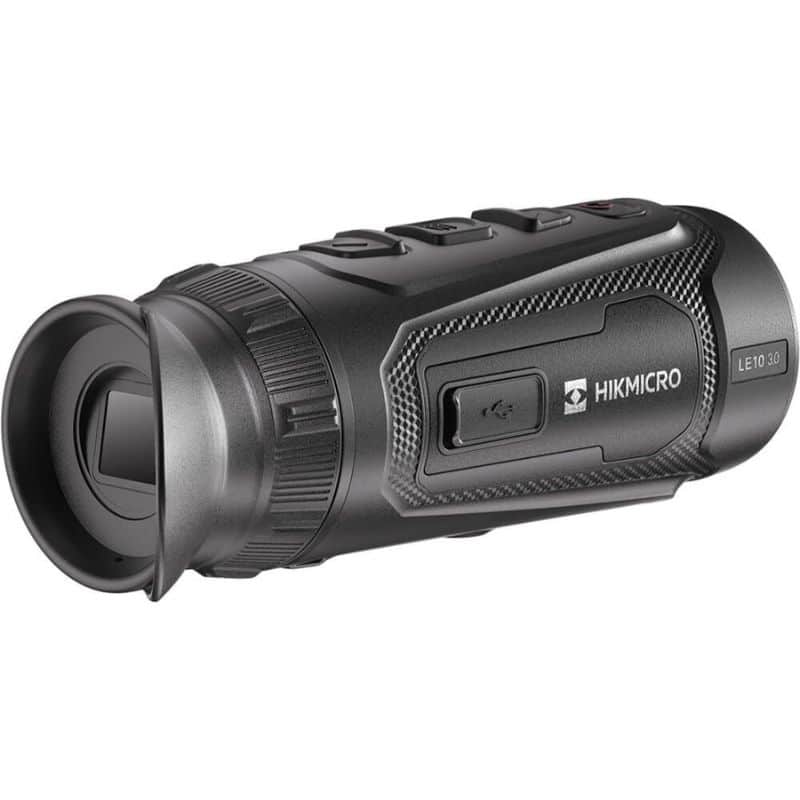

HikMicro Lynx 3.0 LE10 Thermal Imaging Camera

The HikMicro Lynx 3.0 LE10 is an advanced handheld thermal imaging camera equipped with a wide range of features for top-level nature and wildlife observation. Thanks to its compact size and lightweight design, this thermal imager easily fits into your jacket pocket. With a detection range of 500 metres, the Lynx 3.0 LE10 by HikMicro is particularly well suited for short-range observation.

As part of the Lynx 3.0 series, this HikMicro thermal monocular combines high-end technology with practical functionality at a very reasonable price. Below, we explain why this thermal imager is an excellent choice for hunters, reserve managers, and anyone passionate about observing wildlife.

HikMicro Lynx 3.0 thermal imaging cameras
Compared to the Lynx 2.0 range, the HikMicro Lynx 3.0 thermal monoculars are lighter, more compact and deliver even higher image quality. Thermal imagers in the Lynx 3.0 series make use of clever AI-powered algorithms Image Pro 3.0 to produce optimised, detail-rich images. You’ll notice this not only at minimal magnification, but also when using digital zoom. Even at maximum magnification, you’ll benefit from sharp, detailed images. Thanks to this advanced technology, spotting and tracking your target is made easy, even under challenging weather conditions.

Smooth imaging
The HikMicro Shutterless Image System HSIS ensures continuous, smooth imaging by eliminating image freezing. This allows you to rely on a constant, uninterrupted view without any disturbance caused by recalibration during observation.

User comfort
What further distinguishes the Lynx 3.0 thermal imaging camera is its AMOLED display, which delivers clear, highly detailed images. In addition, the image display can be set to two extra colour palettes red monochrome and green monochrome, providing a total of six palettes to choose from. The Lynx 3.0 thermal monoculars also feature a faster start-up time 2 seconds and softer, more responsive control buttons than the previous model, ensuring maximum operating comfort.

Generous internal memory
With an impressive 64 GB of built-in memory, you can store many video recordings with or without audio and photos. Thanks to Wi-Fi connectivity, captured footage can be viewed directly on a smartphone via the HikMicro Sight app and easily shared with others.

Technical features of the HikMicro Lynx 3.0 LE10 thermal imaging camera
The Lynx 3.0 LE10 by HikMicro features a 256x192p sensor with a 12 µm pixel pitch. With a thermal sensitivity NETD of less than 20 mK, even very small temperature differences are displayed with high precision. This thermal imaging camera offers a wide field of view of 18°x13.6°, making it particularly suitable for short-distance use and observation in dense woodland. Images are displayed in excellent clarity and detail on the 0.39-inch 1024x768p AMOLED display. A high refresh rate of 50Hz ensures smooth, fluid motion without lag.

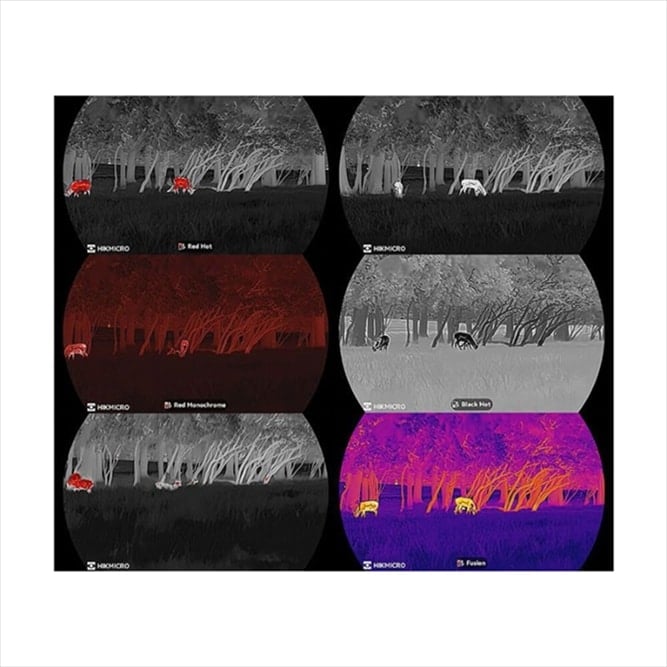

The HikMicro Lynx 3.0 LE10 provides up to 8x digital zoom 1.4x to 11.2x. It also features a PIP Picture-in-Picture mode, which displays a magnified image within the main image for improved situational awareness. As a user of this monocular, you can choose from six different colour palettes for optimal image presentation:

Black Hot
White Hot
Red Hot
Fusion
Red Monochrome
Green Monochrome
Additional functionalities of the HikMicro Lynx 3.0 LE10 thermal imaging camera:
Rangefinder
Hot tracking detects and marks the hottest spot
Video recording with or without audio
Snapshots
Wi-Fi connectivity for viewing sharing footages
HikMicro Lynx 3.0 LE10 thermal imaging camera features
Compact and lightweight design
Image Pro 3.0
HikMicro Shutterless Image System HSIS
Image sensor: VOx Uncooled Focal Plane Arrays
High thermal sensitivity: NETD 20 mK
Detection range: 500 metres
Lens diameter: 9.7 mm f1.0
Field of view: 18°x13.6° H x V of 31.7m x 23.8m at 100 metres
Magnification: 1.4x to 11.2x
Display: 0.39-inch AMOLED
Exit pupil: 6 mm
Eye relief: 20 mm
Dioptre adjustment: -5 to +3
IP67: fully dustproof and waterproof up to 1 metre depth for max. 30 minutes
Operating temperature: -30°C to 45°C -22°F to 113°F
Fast start-up time: 2 seconds
Soft, intuitive control buttons
6 colour palettes
PIP mode
64 GB internal memory eMMC
Compatible with HikMicro Sight app for viewing and sharing images
Rechargeable and replaceable Li-ion 18650 battery
USB-C charging port
